Key Specifications
- Power Output
- 180 kVA
- Voltage
- 115/200 V
- Operating Temperature Range
- -25 to +50 °C
- Gross Vehicle Weight
- 3380 kg
Velocity Ground Power Units (GPU)
Professional ground support equipment engineered for reliable airport operations with safety and efficiency as top priorities.

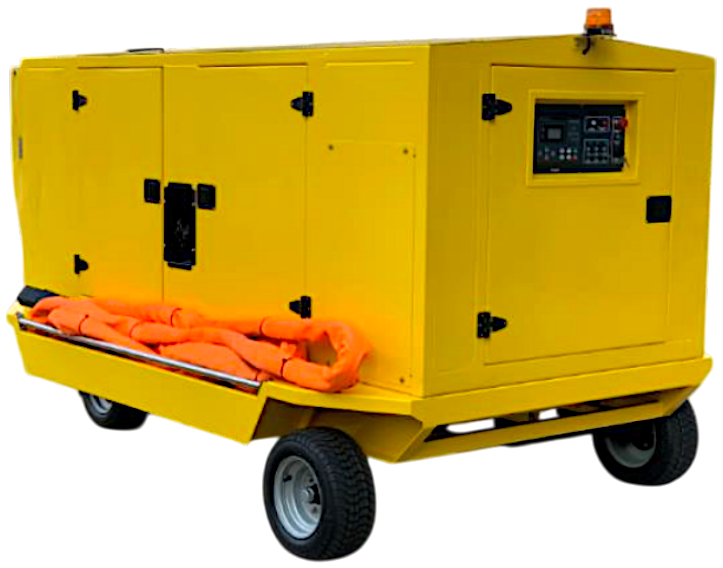

The CT-GPU180 is a cutting-edge 180kVA Ground Power Unit (GPU) engineered for optimal performance with both military and civilian aircraft. Featuring a high-efficiency brushless revolving field generator, this versatile GPU is available in two configurations: a trailer-mounted (PT Type) and a truck-mounted (PQ Type). Built with a sturdy galvanized steel frame and superior torsion axle design, the unit promises durability and resilience, adhering to the latest global emission standards.
The GPU delivers 400Hz electrical power at 115/200V, compatible with a variety of aircraft models, enhancing operational efficiency on the tarmac. It ensures seamless integration and reliable ground power supply, essential for optimal aircraft operations.
The CT-GPU180 complies with key international standards, including ISO 6858-2017 (E), MIL-STD-704F, IATA AHM 972, and SAE ARP5015B-2018. This compliance confirms the unit's quality and performance against rigorous industry benchmarks.
Designed for harsh environmental conditions, the GPU operates effectively at altitudes up to 4000m with a temperature range from -25°C to +50°C and humidity levels up to 95%. The unit incorporates features such as tow-bar activated drum brakes for improved safety and maneuverability.
Additional options are available, including a transformer-rectifier kit, cold-weather starting aid, and enhanced safety components, ensuring tailored solutions meet specific operational demands.
