Key Specifications
- Operating Frequency
- 1090 MHz
- Output Power
- 20 Watt
- Mounting Options
- Permanent, Portable (Magnetic)
- Compliance
- ICAO Annex 10 Mode S Extended Squitter datalink. DF18
- Versions
- Permanent, Portable
- Operating temperature
- -40 - 70°C
- Storage temperature
- -55 °C to +85 °C
- 24-bit non-ICAO address configuration
- YES
- TTFF
- 10 sec
- Message format
- CAT21
- Position transmission rate with the vehicle in motion
- 0.5 sec
- Position transmission rate with the vehicle stationary
- 5 sec

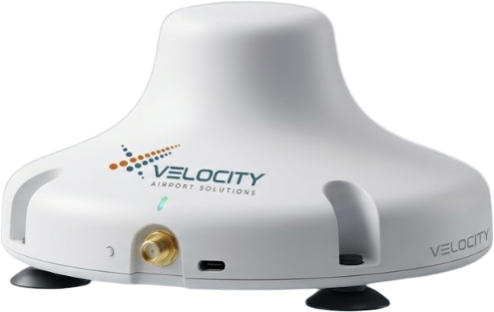

ADS-B Vehicle Tracker
The Velocity ADS-B Squid is a compact 1090MHz ADS-B transceiver engineered for precision vehicle tracking within airport environments. This device exc
